*The page price is only the deposit price. For more information, please contact us.
The bone band saw is suitable for processing bones of various sizes. It can also be used to handle frozen meat, fish bones, frozen fish, and ice. Widely applied in large centralized food processing plants, slaughterhouses, and meat joint processing facilities.

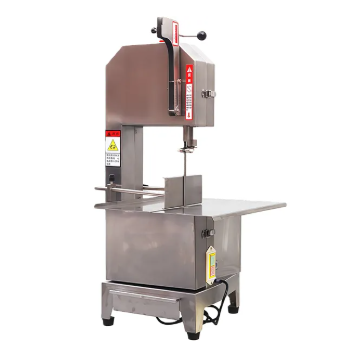

250 Bone Band Saw
Operating speed:1100 m/min
Saw blade size:1650 mm
Cutting capacity:Max 231 mm × width 192.5 mm
Moter:220V/380V 1.1 kW
Worktable size:600 mm × 430 mm
Weight:44.4 kg
Dimensions:620 mm × 590 mm × 940 mm

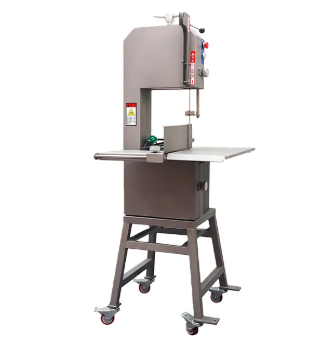

280 Bone Band Saw
Operating speed:1440 m/min
Saw blade size:1830 mm
Cutting capacity:Max 280 mm × max width 200 mm
Moter:Three-phase 380 V/ 1.1 kW
Weight:65 kg
Dimensions:600 mm × 540 mm × 1500 mm

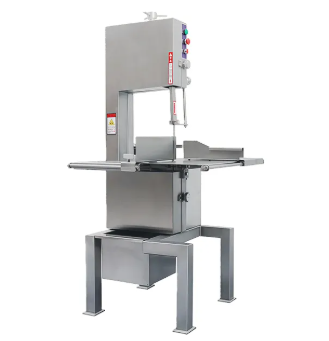

380 Bone Band Saw
Operating Speed:1500 m/min
Saw blade size:2490 mm
Cutting capacity:Max 380 mm × max width 300 mm
Motor:Three-phase 380V/1.5 kW (50Hz)
Weight：128 kg
Dimensions：800 mm × 700 mm × 1740 mm
1. Commercial high-power motor is used to eliminate the problem of insufficient power cutting and slow cutting;
2. Up and down gear transmission device, high kinetic energy transmission rate, high operation efficiency, good stability, fast cutting without delay; high toughness imported saw blade, low loss and sharper, easy to cut fresh, frozen hard bones frozen meat and other cuts smooth without black;
3. Protect push handle, avoid manual contact with the machine, the machine is equipped with push handle, easy cutting is not afraid of cutting hands;
4. Knob device, saw blade loosening easy adjustment, saw blade loosening easy adjustment cutting more convenient; Push-type device, easy to adjust the cutting thickness, push the push table before and after adjustment, the thickness can be mastered;
You can also saw a lot of things waiting for you to play saw bones, saw ribs, saw frozen meat, it can also saw sugar cane and so on.

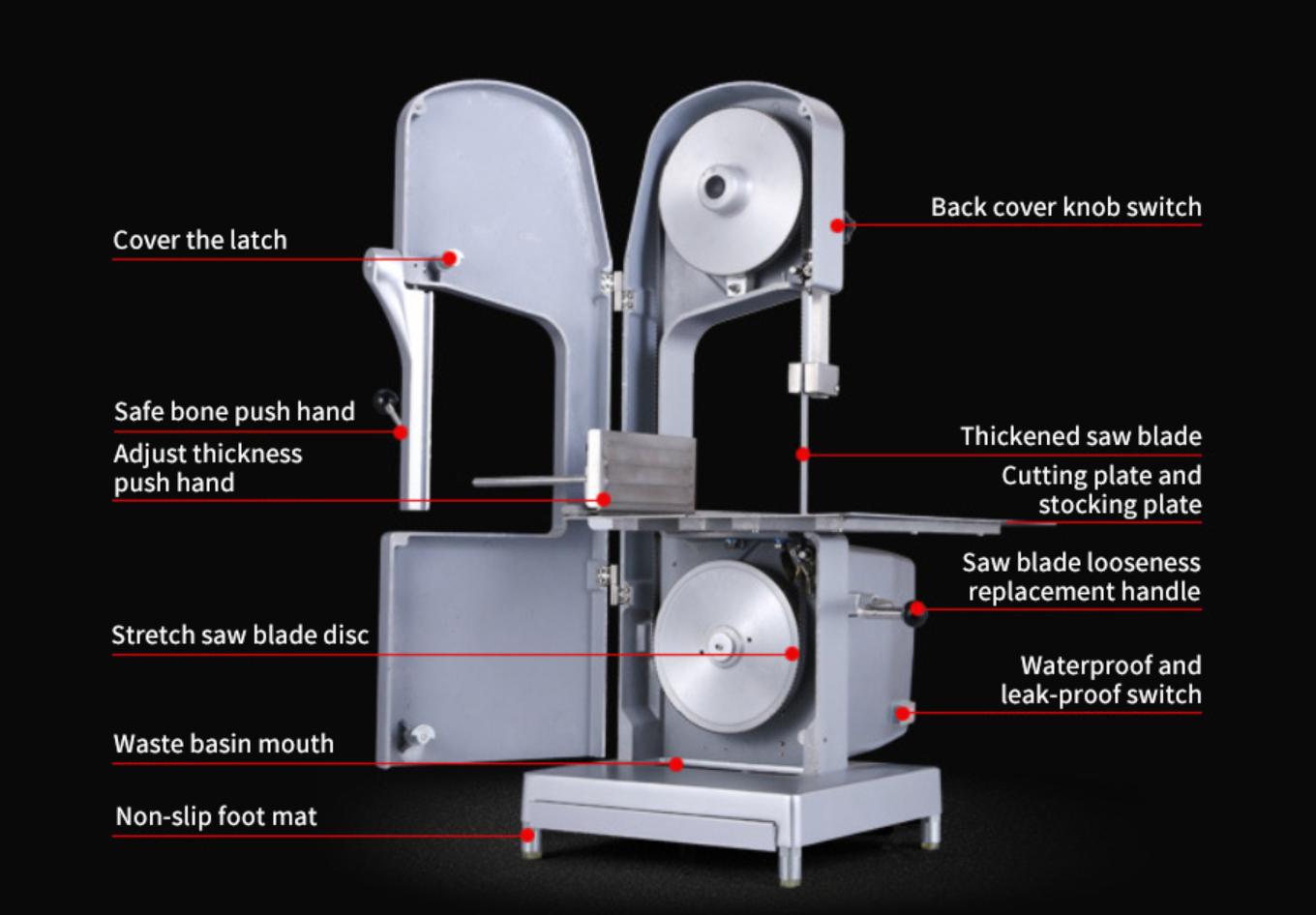

Product details introduced multi-directional display

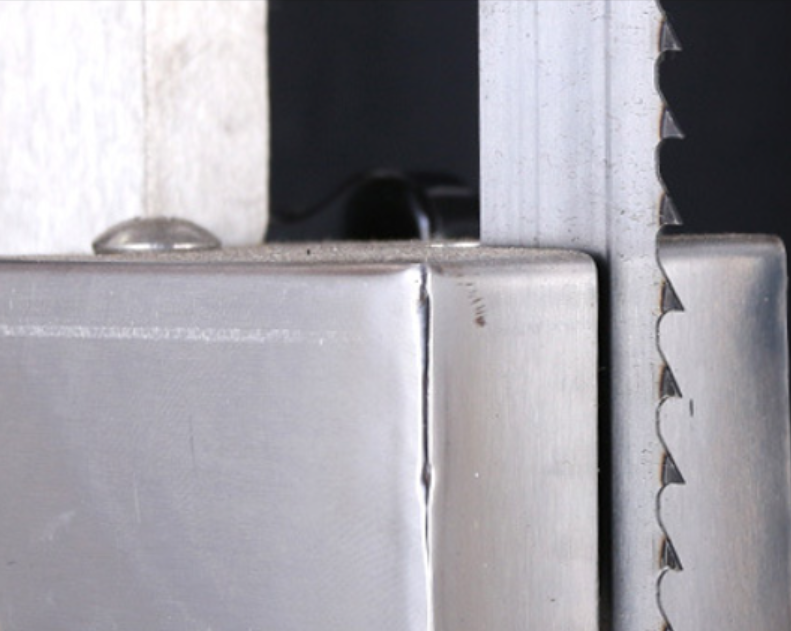

Thicken the Cutting Edge
High-performance alloy steel that has undergone rust prevention treatment complies with international food safety and hygiene standards.
The saw blade has undergone high-frequency hardening treatment, which gives it extremely high hardness and wear resistance. It can easily handle hard animal bones or frozen fish meat.
The back of the saw blade maintains good toughness, enabling it to withstand frequent bending and tensioning pressures without easily breaking, thereby extending its service life.

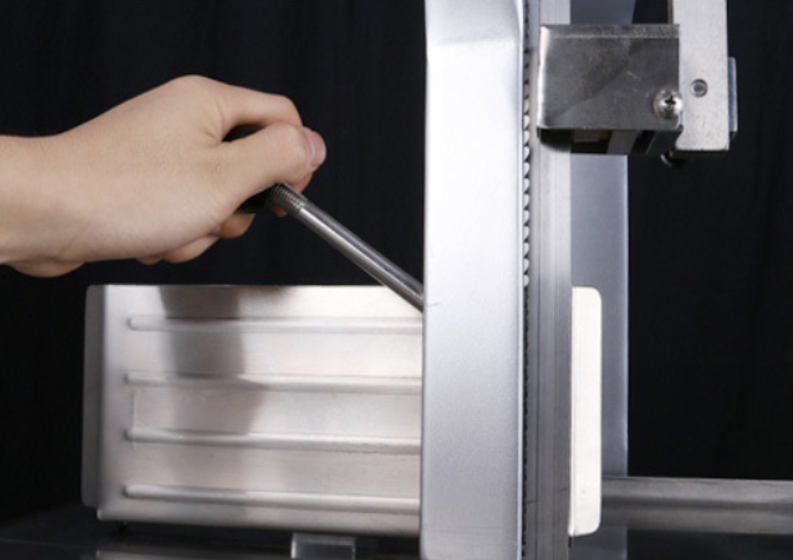

Fever Safety
By operating the handle, you can push the ingredients without having to get close to the high-speed rotating saw blade.
By leveraging the principle of leverage and using a stable slide, the operator can push large, hard frozen bones with relatively little force.
The feeding device is also made of high-quality 304 stainless steel, which is corrosion-resistant and easy to clean, and complies with food-grade hygiene standards.

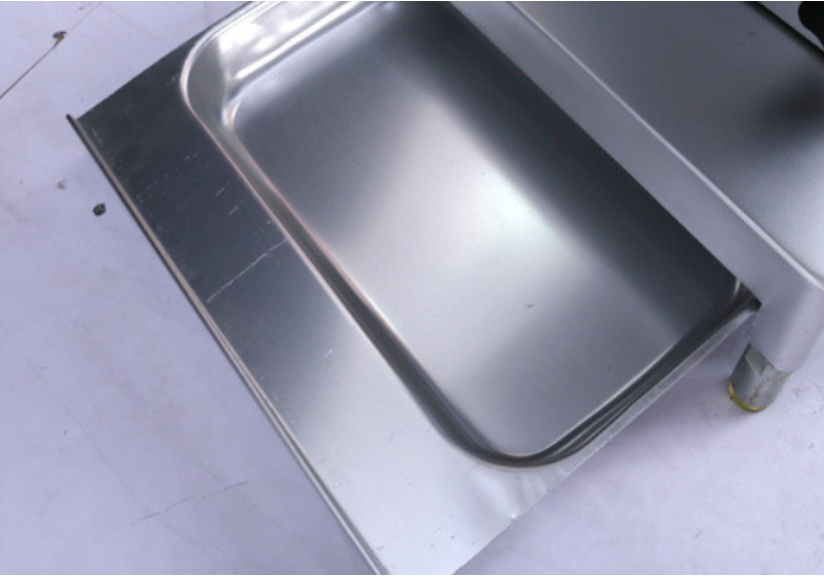

Hook up the Slag Basin
It is made of food-grade stainless steel, effectively collecting the debris and bone powder generated during the process of sawing bones. This can effectively prevent waste from splashing or accumulating inside the machine or on the working surface.

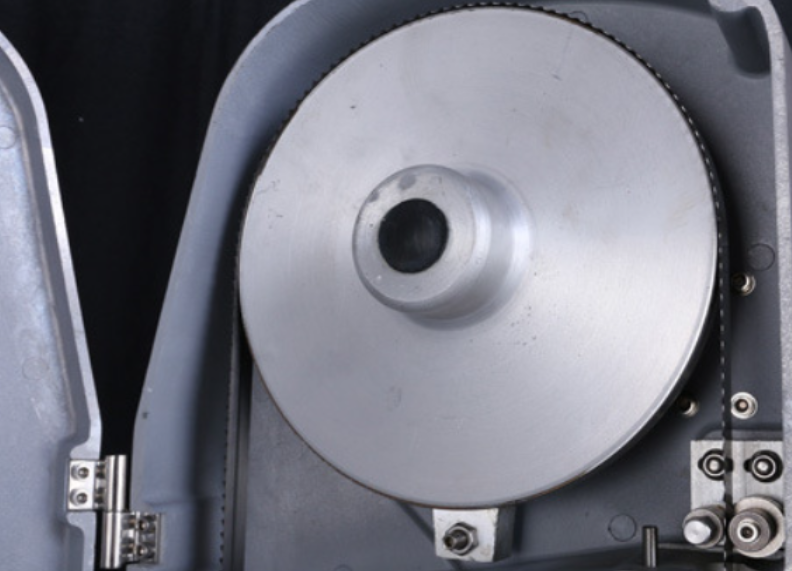

Upgraded Fixed Saw Blade
The upgraded fixing device can more securely lock the saw blade, significantly reducing the risk of the saw blade shifting or falling off during the machine's high-speed operation.
A stable fixation system can effectively suppress the slight tremors of the saw blade when cutting hard bones, ensuring a smooth and flat cutting surface.

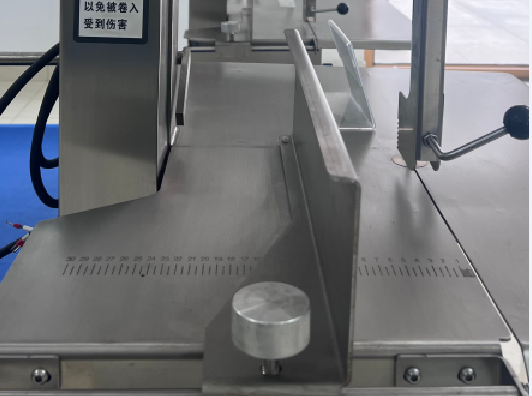

Desktop Scale
Operators can adjust the position of the baffle intuitively and quickly by referring to the scale.
It can ensure that the thickness of each piece of meat or bone is exactly the same, which is of vital importance for scenarios such as restaurant supply or supermarket packaging where high standards of standardization are required.
