The automatic meat forming machine completes filling, forming, and discharge in a fully automated process, producing a wide range of products such as hamburger patties, chicken nuggets, fish cakes, pumpkin pies, kebabs, and more. It is an ideal forming solution for fast-food plants, distribution centers, and food processing factories handling both meat and vegetable mixtures.
Product Parameter：
Production capacity:30-50kg/h
Tank capacity:30l
Patty diameter：0-100mm
Patty thickness：6-18 mm (can be adjusted)
Power：0.55 kW
Power supply：380V / 50Hz
Weight：100kg
Dimension：860 × 600 × 1400 mm

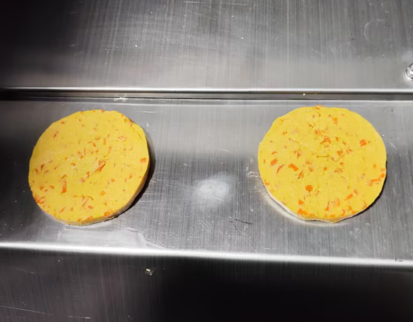

Production sample demonstration：
chicken patty
vegetable patty
pork patty
pet treat
Show Details：

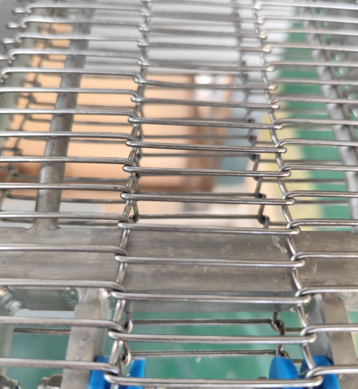

Type B mesh: Made of high-quality food-grade stainless steel SUS304, with a high opening rate design. The open interlocking metal wire design minimizes gaps and product traps, while also keeping the product base clean and reducing oil contamination during subsequent frying processes.

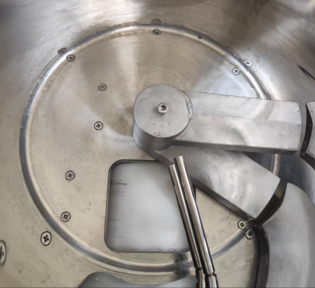

Hopper: The entire feed hopper is made of durable and food-grade SUS304 stainless steel, with the surface treated by high-gloss polishing. It is equipped with an optimized agitator mechanism that can gently mix and guide the meat sauce towards the forming mold. It effectively prevents material "blockage", while maintaining the structural integrity and fibers of the meat, thereby providing better product texture.
Mechanical transmission: Equipped with industrial-grade high-strength tension springs and heavy-duty connecting rods. It can ensure instantaneous, zero-delay mechanical reset, prevent misalignment, and maximize production speed (60 times per minute), and is driven by heavy-duty mechanical cams and sturdy shaft transmission mechanisms. It converts rotational power into precise, synchronous reciprocating motion, ensuring consistent weight of each formed meat patty (with an error of less than 1%).

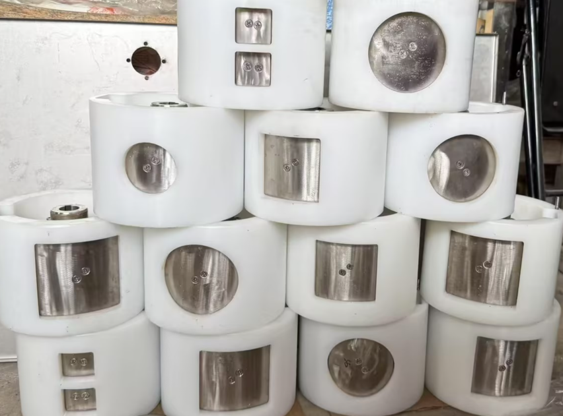

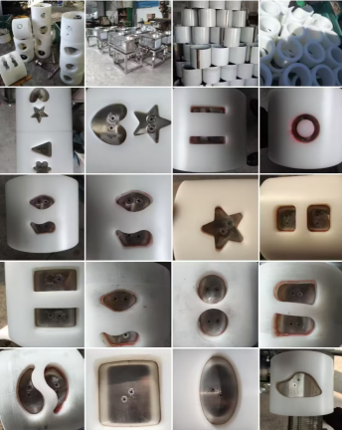

Customized molds：

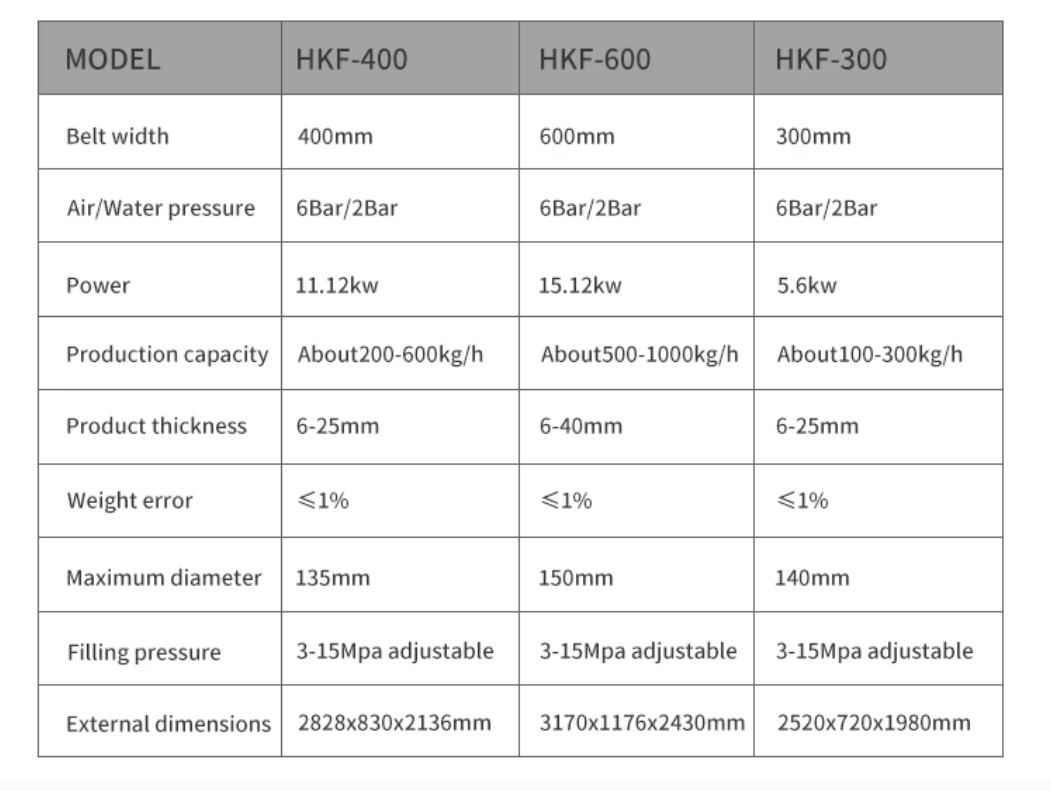

Other Model Parameters：
About Us：

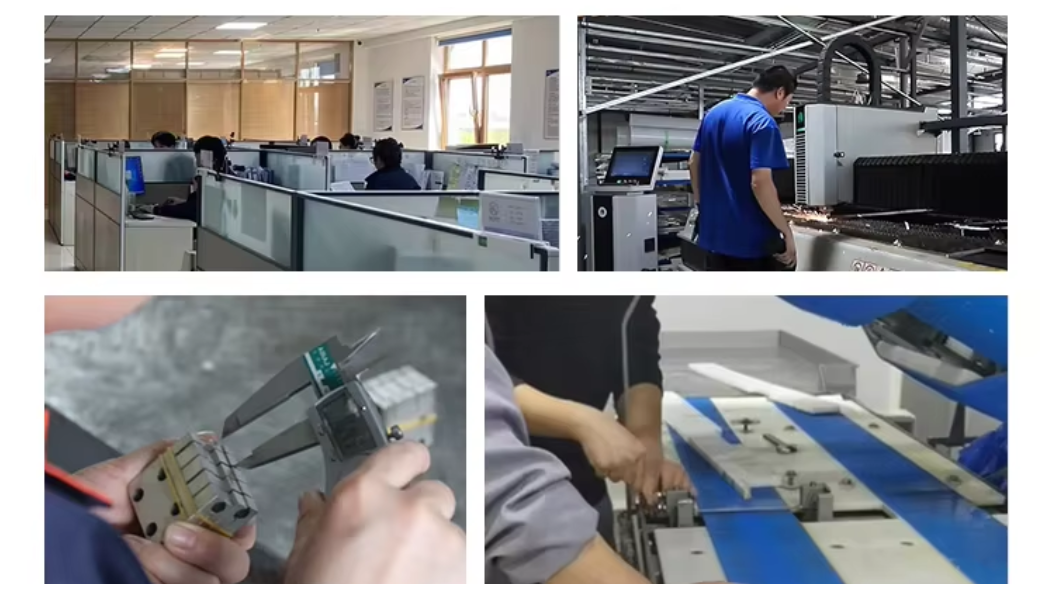

Jinan Hanke Machinery Co., Ltd. is located in Jinan, the intersection of Shandong Peninsula and central China, and is a high-end food machinery manufacturer. The company is committed to the research and development and manufacture of food processing and production equipment. The main products are fresh meat slicer, chicken slicer, dicing machine, meat pie forming machine, sizing machine, powder packaging machine and other equipment. Provide excellent productivity for food processing industry. Hanke has won wide popularity and good reputation by relying on advanced design technology and professional processing equipment. They not only established cooperative relations with well-known domestic food processing enterprises, but also successfully entered the international market with their products. Adhering to the enterprise spirit of "creating the future and sharing success", Hanke will meet more partners with high-quality products and advanced development concepts, and work together to create a better future.
