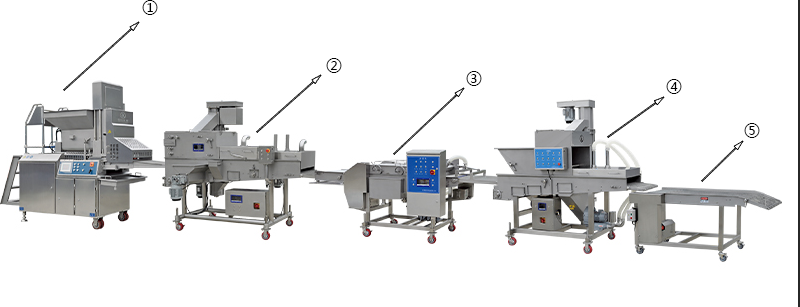

Meat Forming Equipment → Battering Machine → Breading Machine
Automatic meat forming, battering and breading line can handle filling, forming, and discharging in a fully automated process. It produces meat patties in various shapes, suitable for a wide range of raw materials such as fish, beef, pork, chicken, and vegetables. By changing molds, it can form patties into different shapes including round, square, oval, triangular, heart-shaped, and more.
①Meat Patty Forming Machine
Output：15–34 cycles/min
Hopper capacity：30L
Power：0.12 kW
Conveyor width：200-230 mm
Mold width：240 mm
Power supply (customizable）：380 V, 50 Hz
Product thickness：5-35mm
Feeding method：Twin-screw feeder
Production capacity：70-180 kg
Product filling range：180 × 140 mm (W × H)
Max product diameter：≤140 mm
Dimensions：2150 × 650 × 1650 mm
②Flat Plate Powdering Machine
Conveyor speed range：3-15 m/min (variable frequency)
Infeed height：870-970 mm
Outfeed height：1000 ± 50 mm
Power：2.93 kW
Belt width：600 mm
Dimensions (L × W × H)：2655 × 1040 × 2150 mm
③Food Starching Machine
Belt width：600 mm
Conveyor speed：3–18 m/min
Infeed / Outfeed Height：1050 ± 50 mm
Power：2.2 kW
Dimensions (L × W × H)：3100 × 1120 × 1400 mm
④Bread Crumb Coating Machine
Conveyor speed：3-18 m/min
Infeed height：870-970 mm
Outfeed height：1000 ± 50 mm
Power：3.7Kw
Belt width：600mm
Dimensions (L × W × H)：2640 × 1060 × 2240 mm
⑤Transmission Network Cable
